Model Basic Information

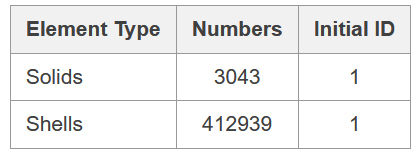

The EEVC-MDB barrier model is a shell element model, which is developed by Dynawe based on the free model of ANSYS company, and the latest version is 1.0. The total mass of the barrier is 950kg. The impact performance of the barrier is determined by the characteristics of honeycomb aluminum material.
Model performance
Two collision analysis test benchmarks are used to illustrate the performance of the model:
1. Frontal 100% overlapping rigid barrier impact

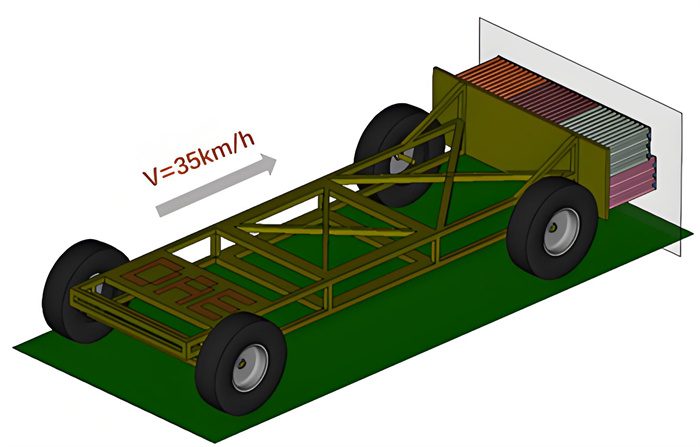

In this analysis, the barrier strikes the rigid wall at a speed of 35 km / h, as shown in the figure.
Barrier deformation:

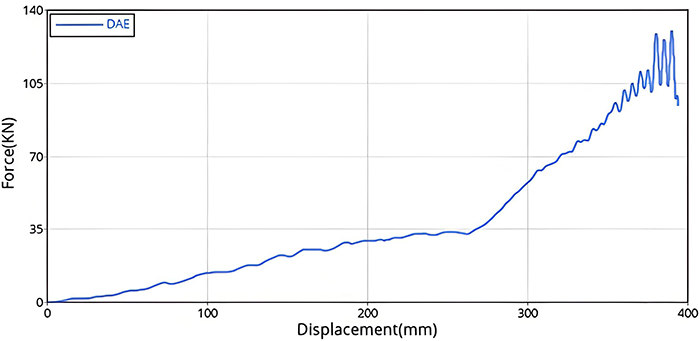

Force displacement curve:
2. Front column impact

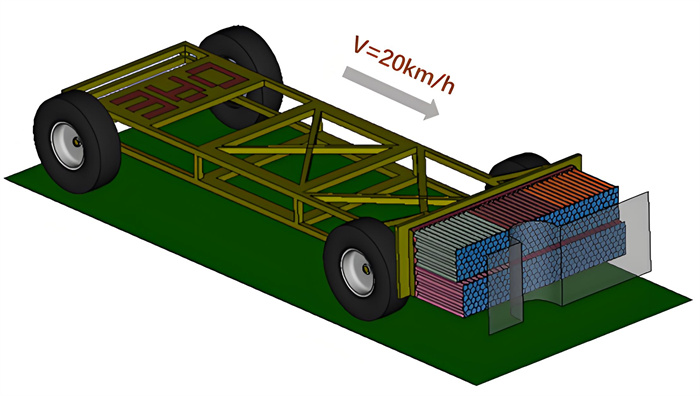

In this analysis, the barrier strikes the cylindrical rigid wall at a speed of 20km / h, as shown in the figure.
Barrier deformation:
Force displacement curve:
For more details information and purchase of the model, please contact Shanghai Dynawe Information Technology Co., Ltd.: Stephen Zhao, Tel.: 13816888516, email: Stephen zhao@dynawe.com
