H305 Dummy FEA Model
The H305 dummy model is developed by Dynawe in collaboration with Japan's JASTI company, which calibrates various components of the dummy using LS-DYNA software. The calibration simulation analysis of each component is conducted according to the calibration procedure of the physical dummy model, and the results are compared and optimized with the physical calibration test results. Finally, a high-precision H305 FEA dummy model that has been calibrated and verified is obtained, with the latest version being 2.2.

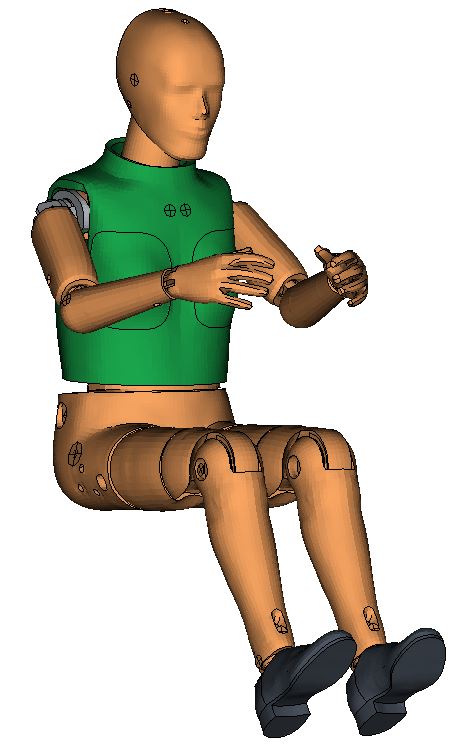

Finite element model
Component-level calibration
Head drop test calibration

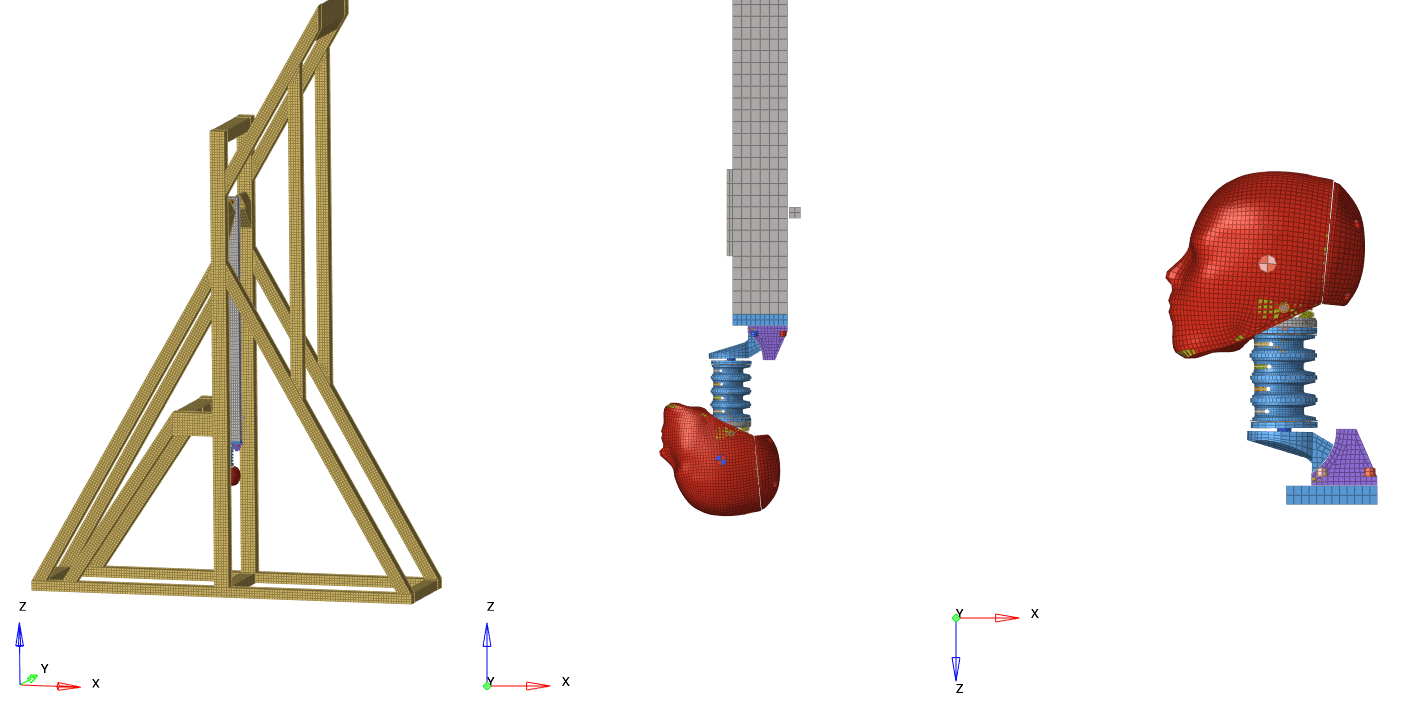

Neck stretch test calibration

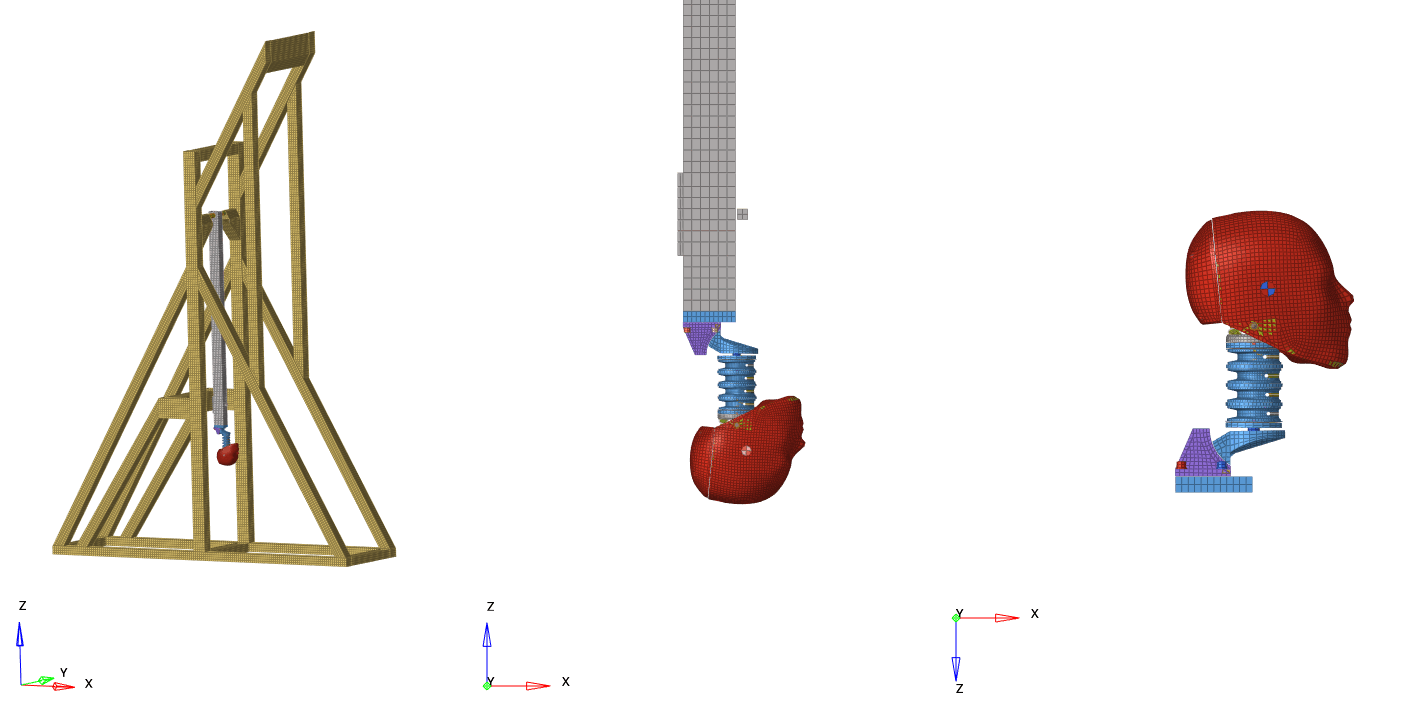

Neck bending calibration

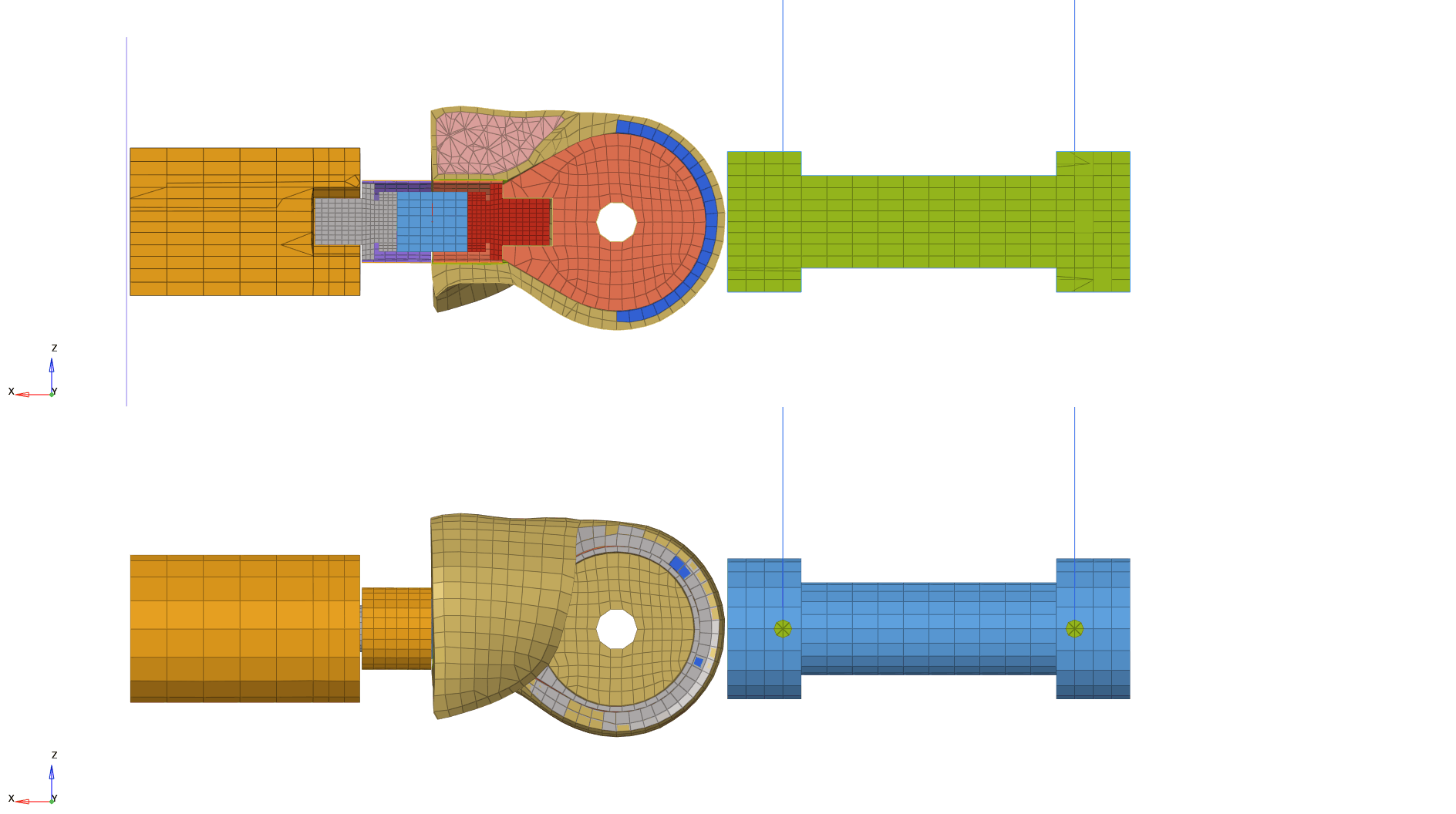

Knee impact test calibration

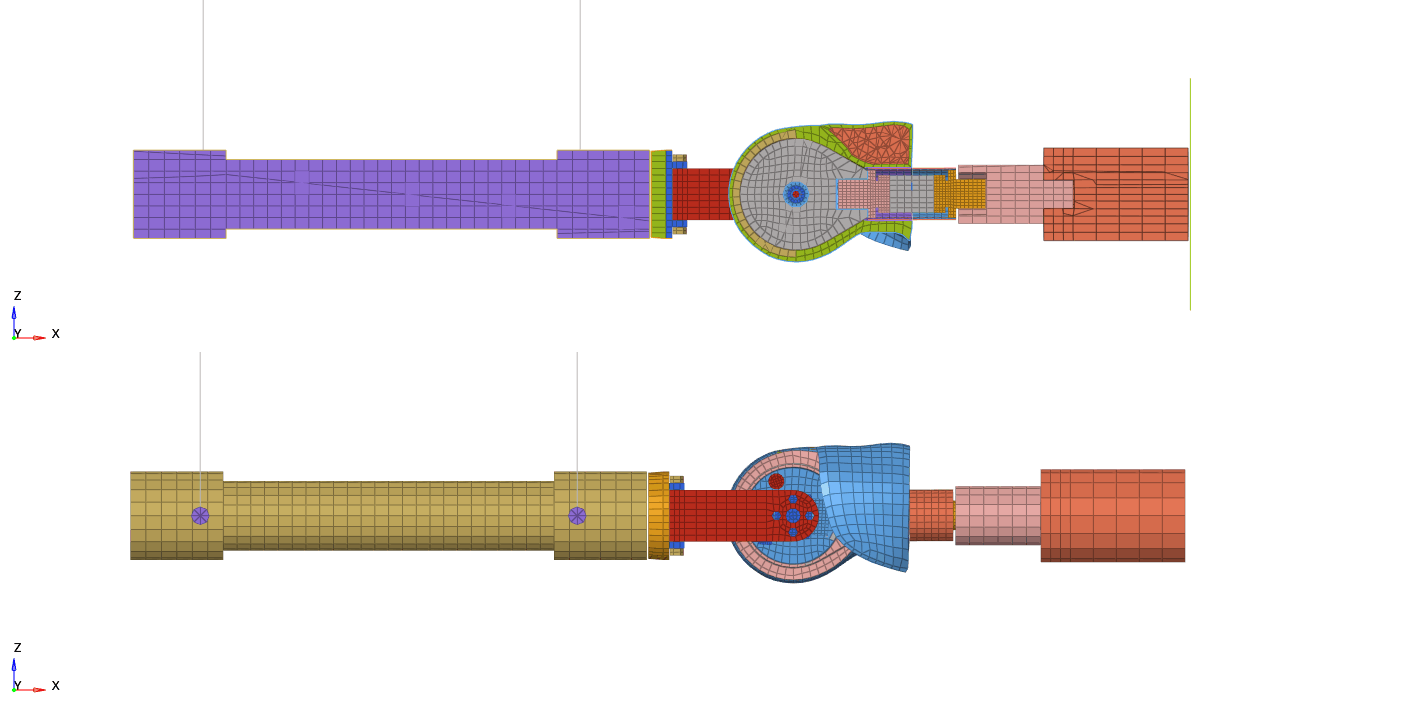

Knee slider impact test calibration
Full dummy-level calibration

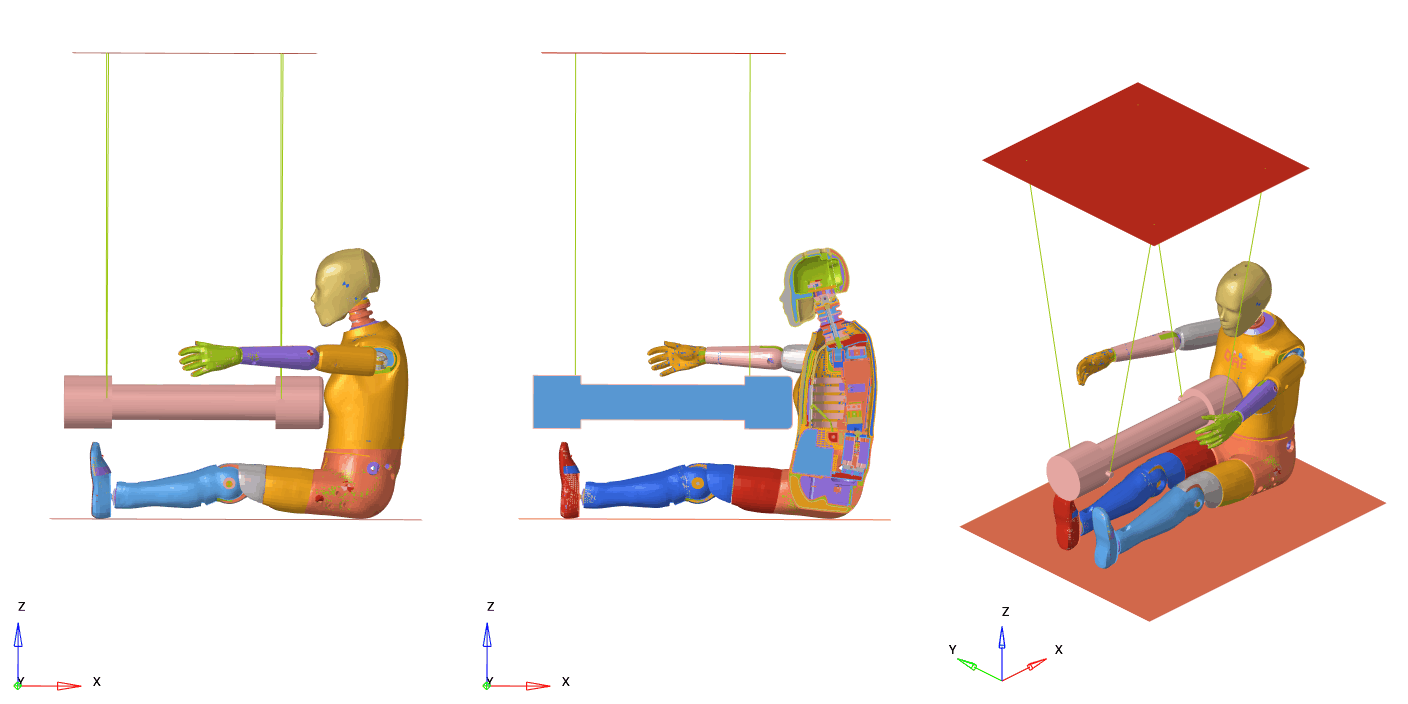

Chest impact test calibration
For more information about the dummy model, please contact Shanghai Dynawe Information Technology Co., Ltd.: Stephen Zhao, Tel: 13816888516, Email: stephen.zhao@dynawe.com.
