IIHS-MDB 2.0 barrier finite element model
The IIHS-MDB 2.0 barrier model is a redeveloped version based on the 1.0 barrier model, tailored to meet updated regulatory requirements. The total mass of the barrier vehicle is 1900kg, and the impact performance of the barrier is determined by the characteristics of honeycomb aluminum material. The current latest version is 1.0.

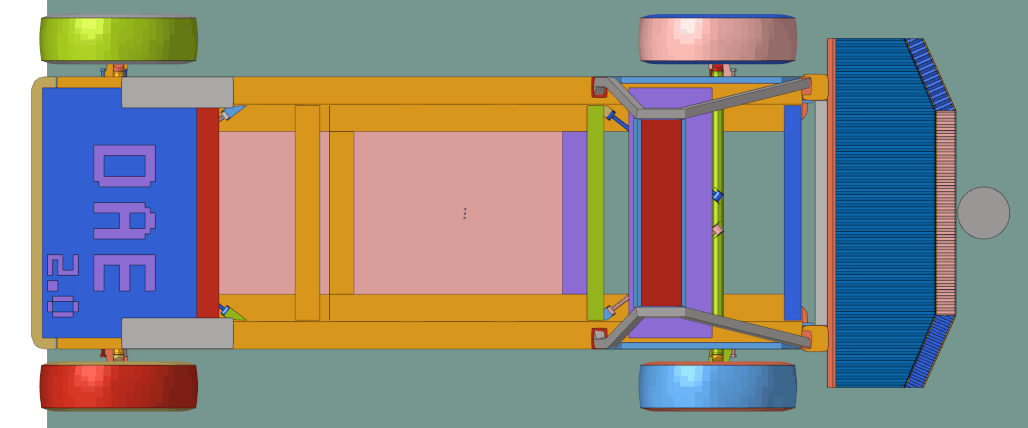

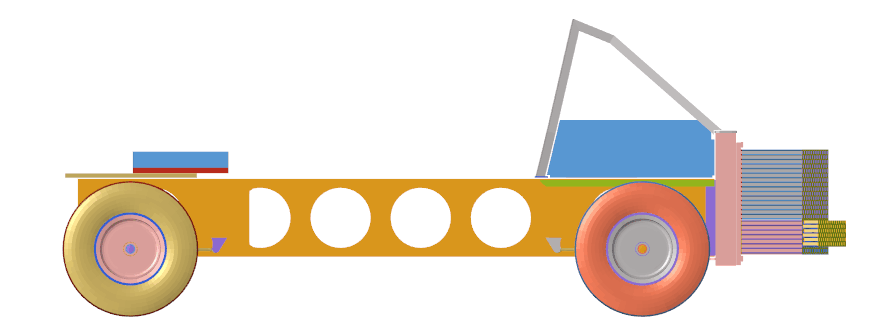

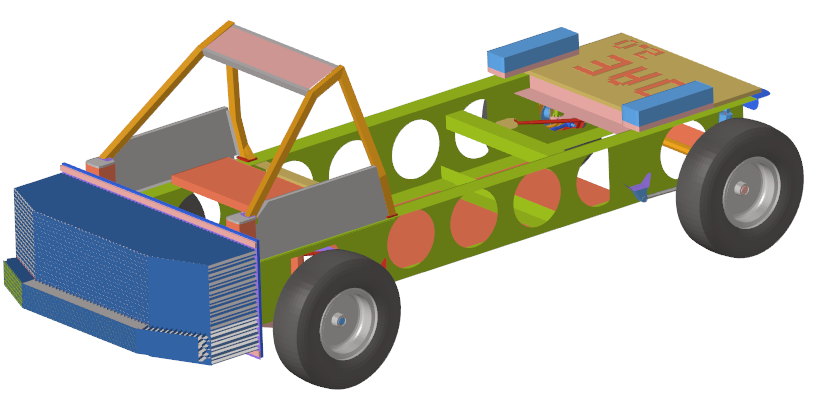

Finite element model
Two physical experiments and simulation comparisons are conducted to illustrate the performance of the model:

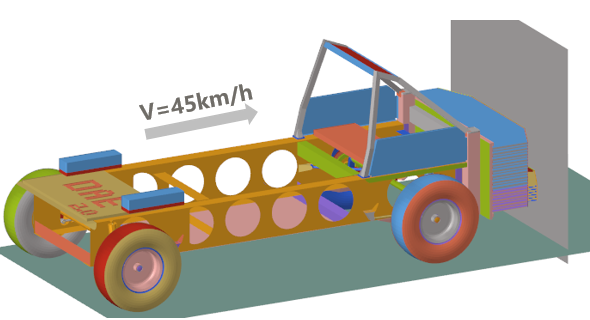

1. 100% frontal overlap rigid barrier impact

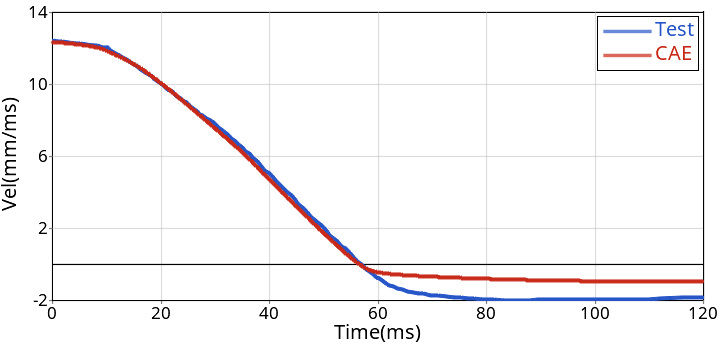

Time-speed curve

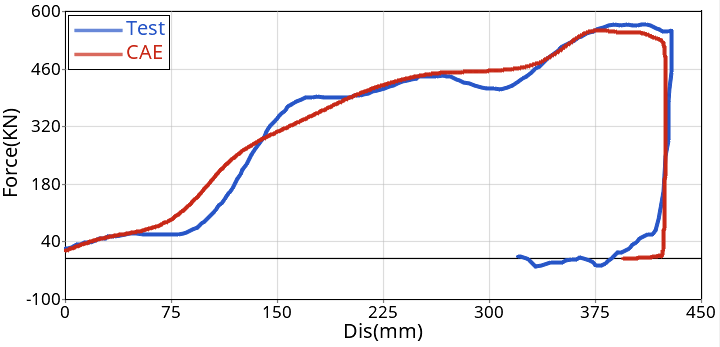

Displacement-force curve

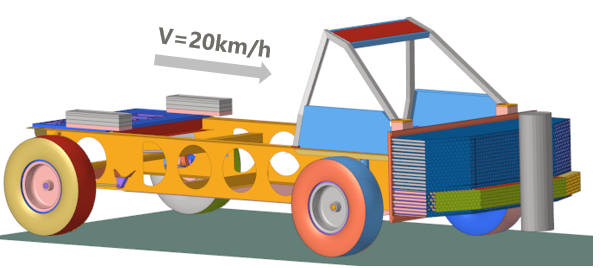

2. Front center column impact

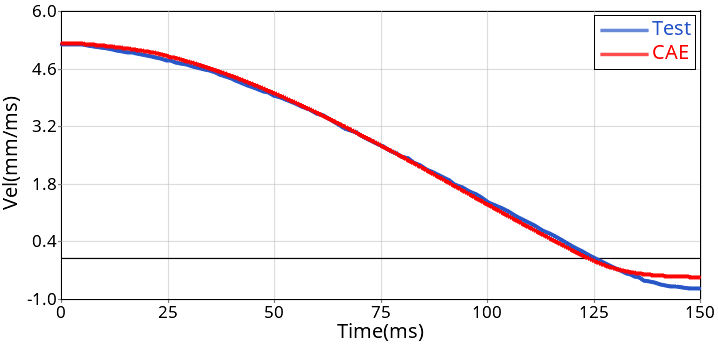

Time-speed curve

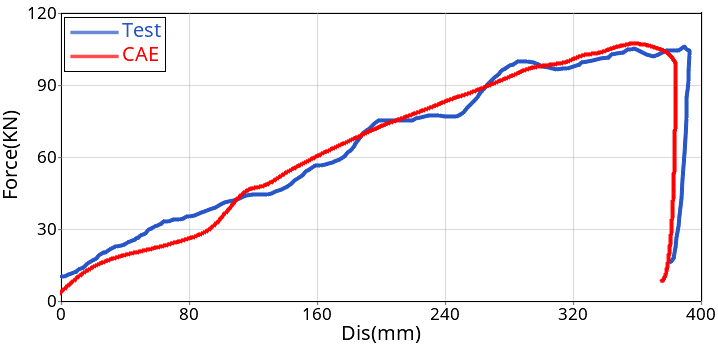

Displacement-force curve
For more information about the obstacle avoidance model, please contact Shanghai Zhuowei Information Technology Co., Ltd.: Stephen Zhao, Tel: 13816888516, Email: stephen.zhao@dynawe.com.
