H350 Dummy FEA Model

The H350 dummy model is developed by Dynawe in collaboration with Japan's JASTI company for calibrating various components of the dummy using LS-DYNA software. It involves calibrating and simulating analysis of each component according to the calibration procedure of the physical dummy model, comparing and optimizing the results with physical calibration tests, and ultimately obtaining a calibrated and validated high-precision H350 FEA dummy model. The latest version is currently 2.3.

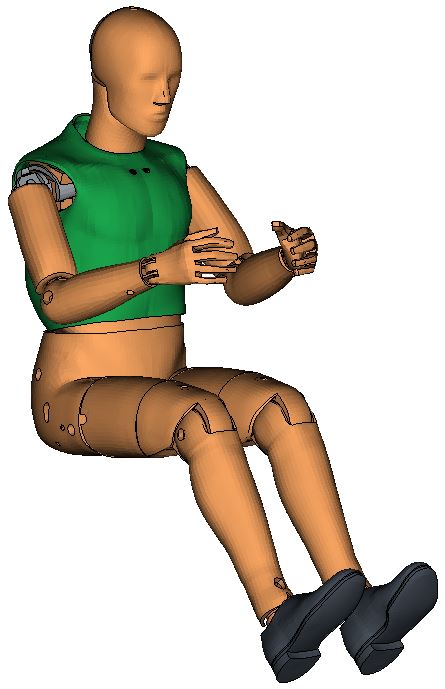

Finite element model

Component-level Calibration

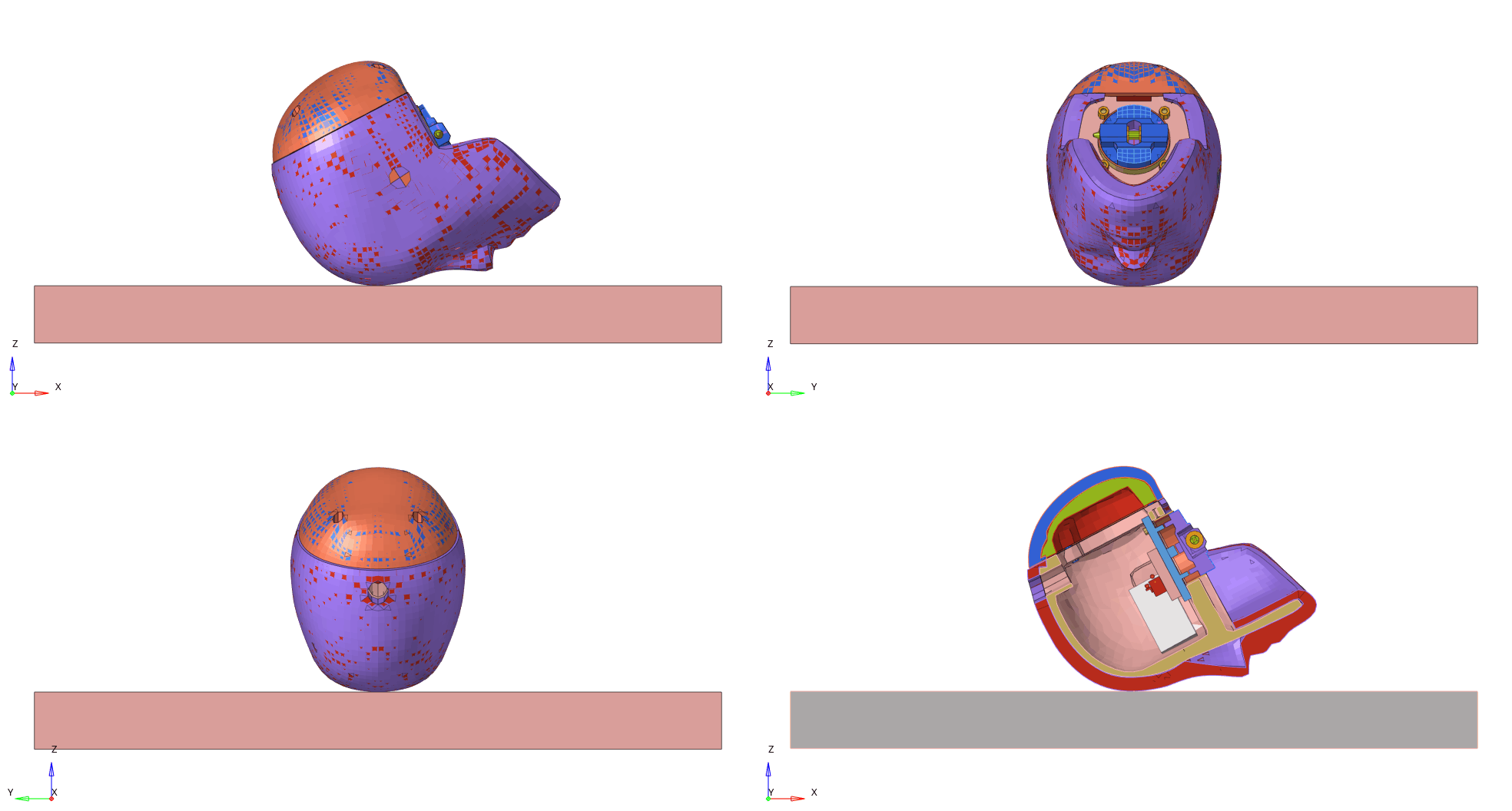

Head drop test calibration

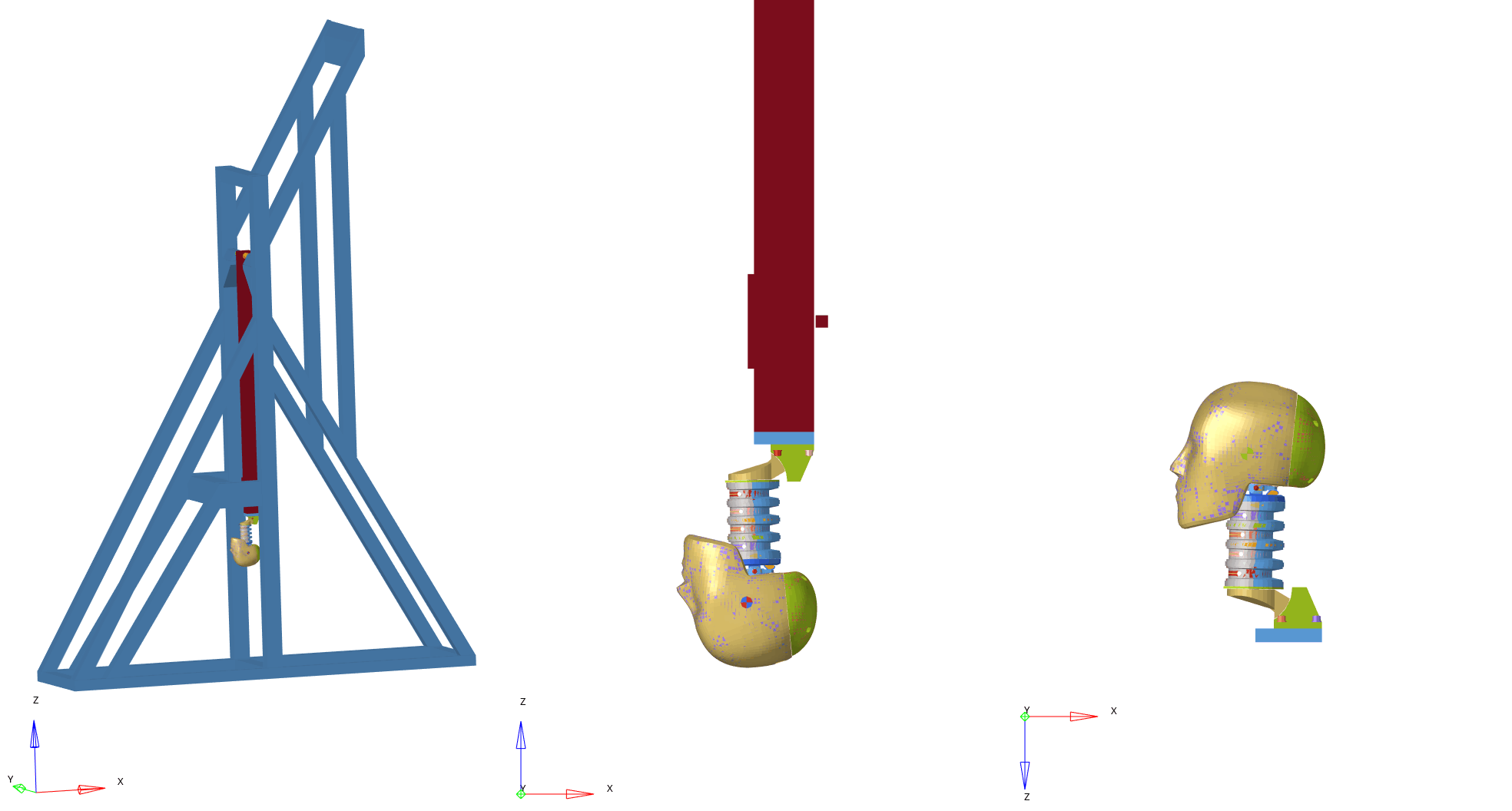

Neck stretching test calibration

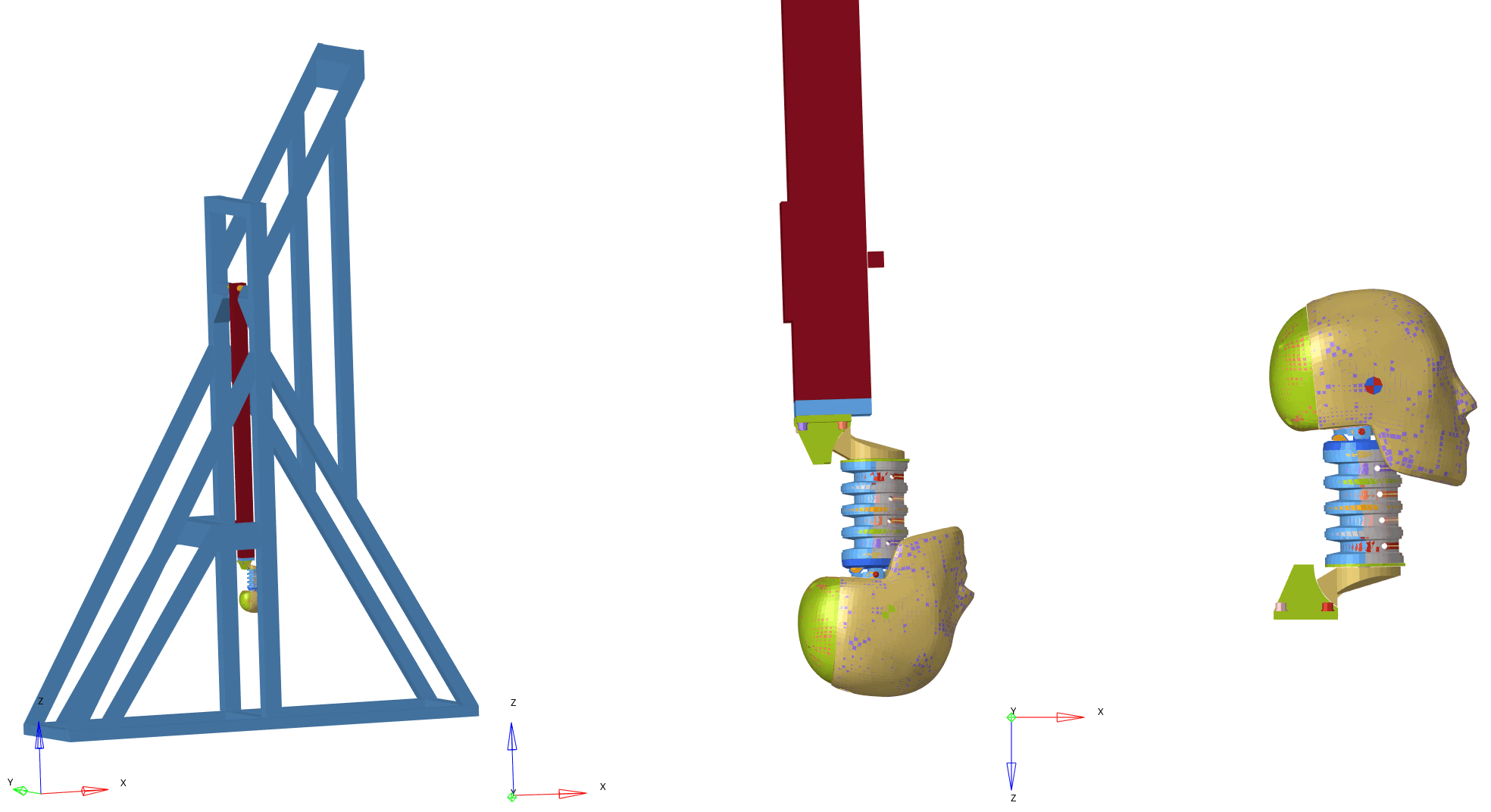

Neck bending test calibration

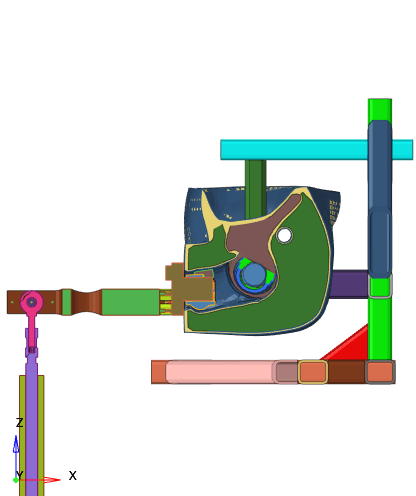

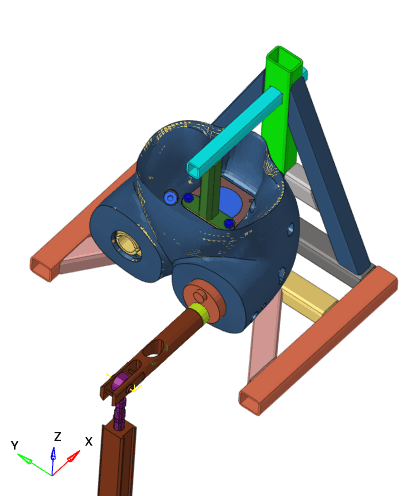

Hip-joint femur bending test calibration

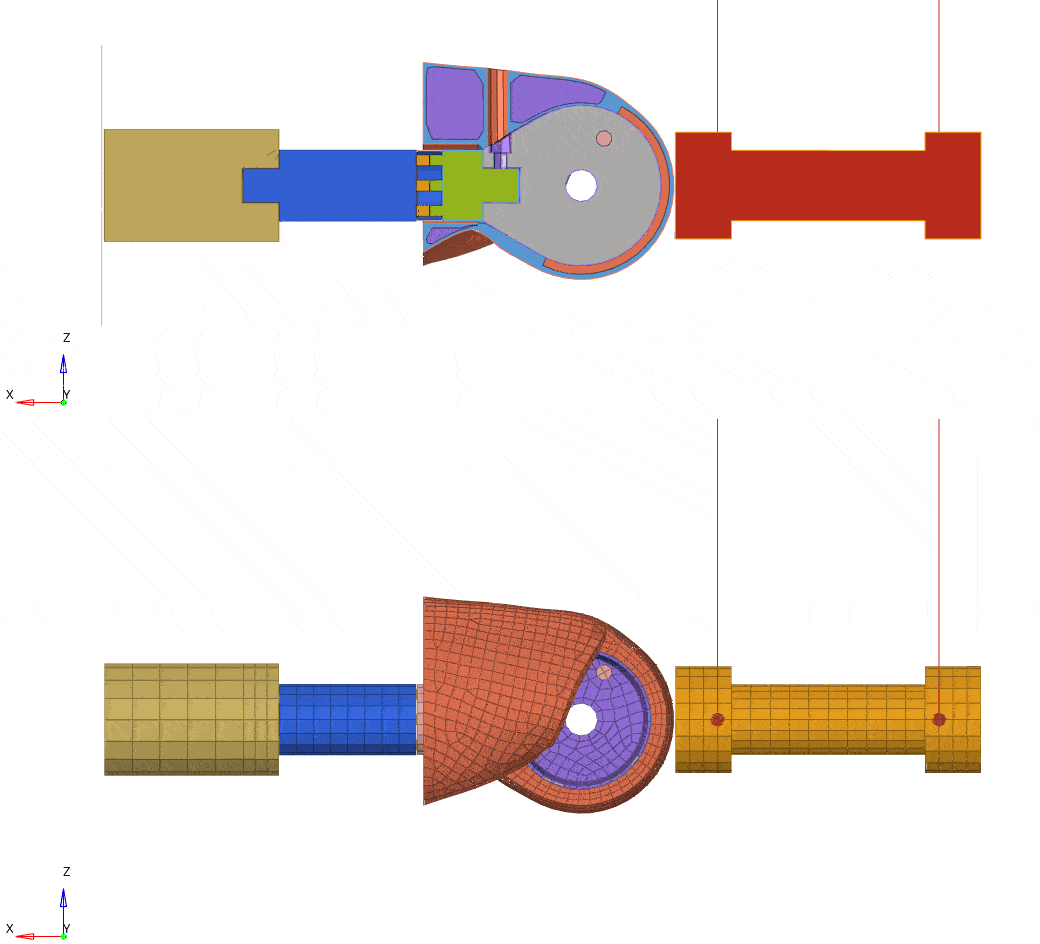

Knee impact test calibration

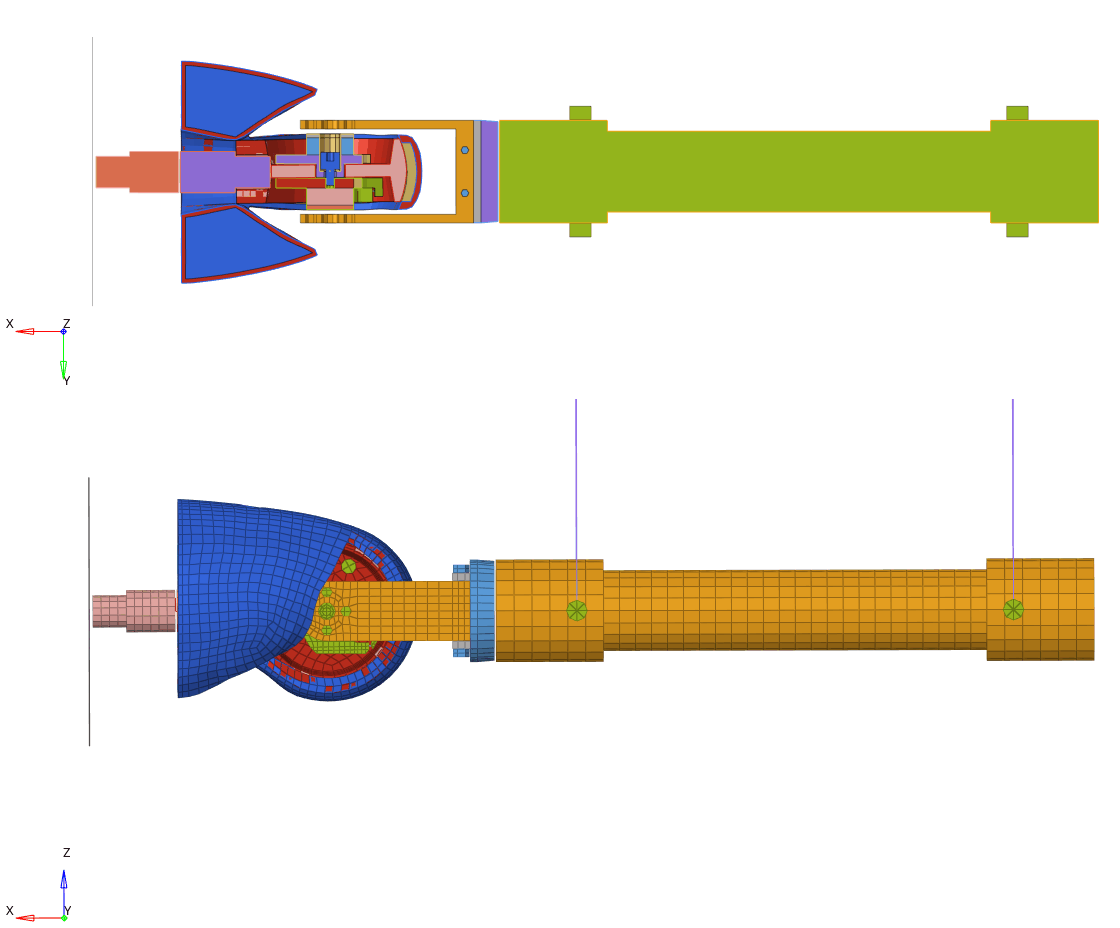

Knee slider impact test calibration

Full dummy-level Calibration

Chest impact test calibration

For more information about the dummy model, please contact Shanghai Dynawe Information Technology Co., Ltd.: Stephen Zhao, Tel: 13816888516, Email: stephen.zhao@dynawe.com.
