SID-IIs Dummy FEA Model

The SID-IIs dummy model is developed by Dynawe in collaboration with Japan's JASTI company for calibrating various components of the LS-DYNA software. It undergoes calibration simulation analysis for each component according to the calibration procedure of the physical dummy model, and is compared and optimized with the results of physical calibration tests. Finally, a high-precision SID-IIs finite element dummy model that has been calibrated and validated is obtained, with the latest version being 1.1.

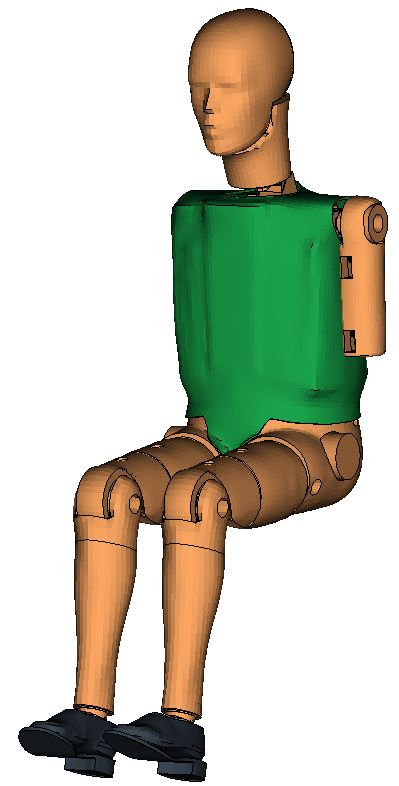

Finite element model

Component-level calibration

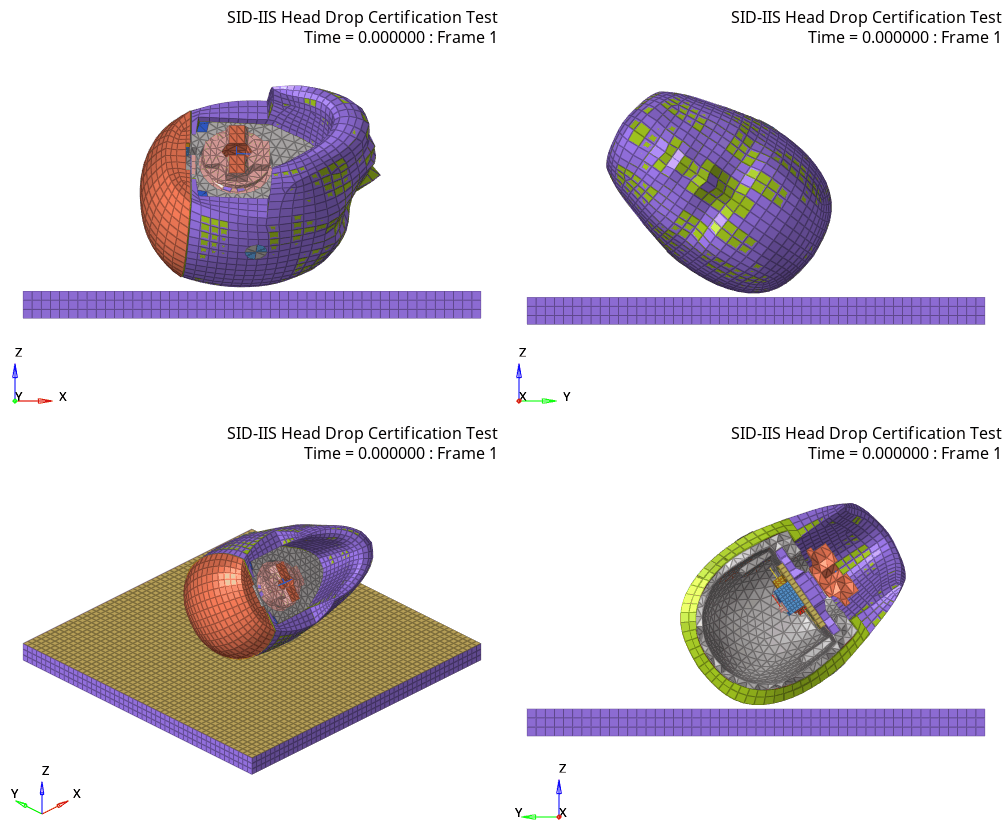

Head drop test calibration

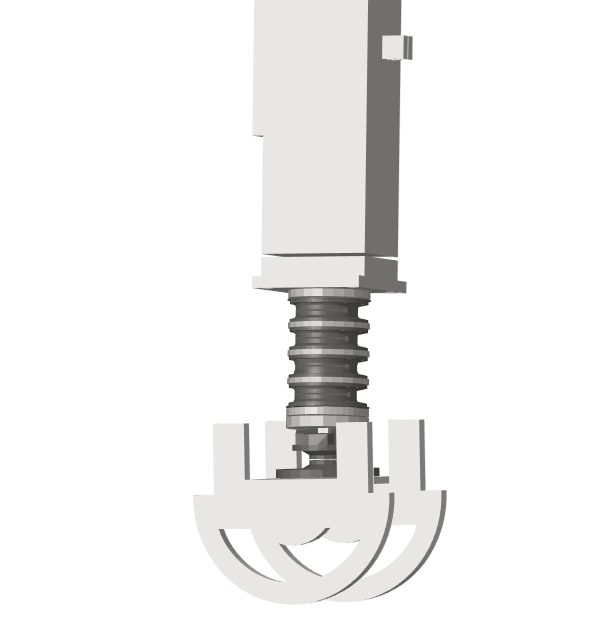

Neck Pendulum Test Calibration

Full dummy-level calibration

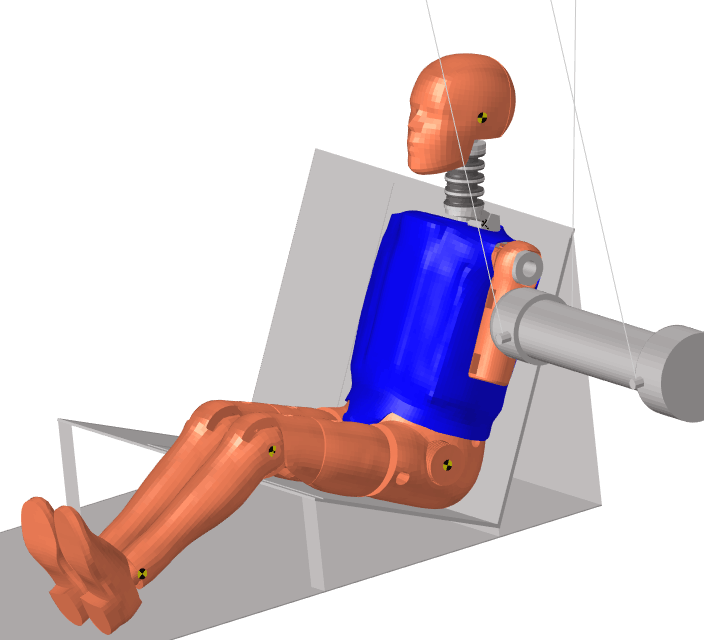

Shoulder impact test calibration

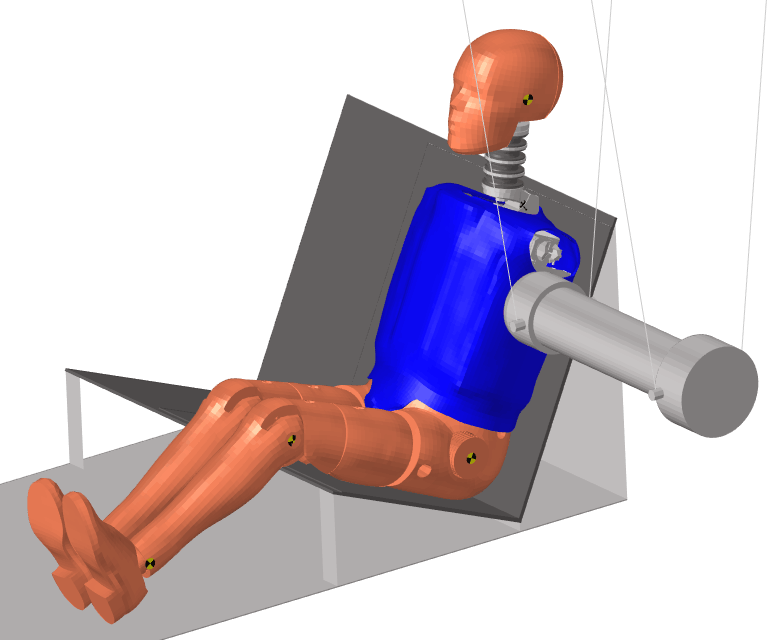

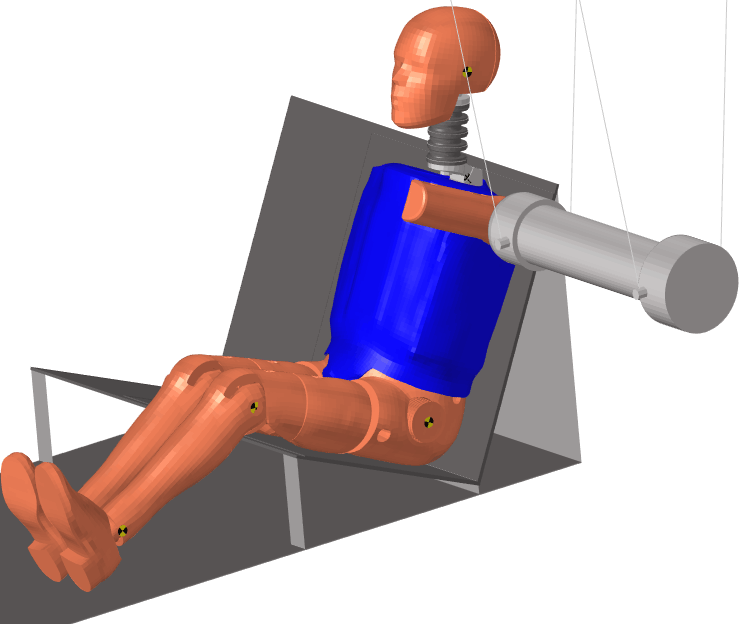

Chest impact test with arms calibration

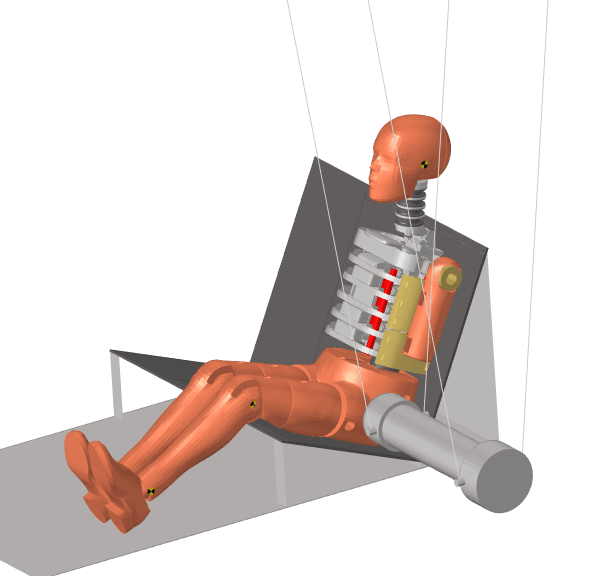

Chest impact test without arms calibration

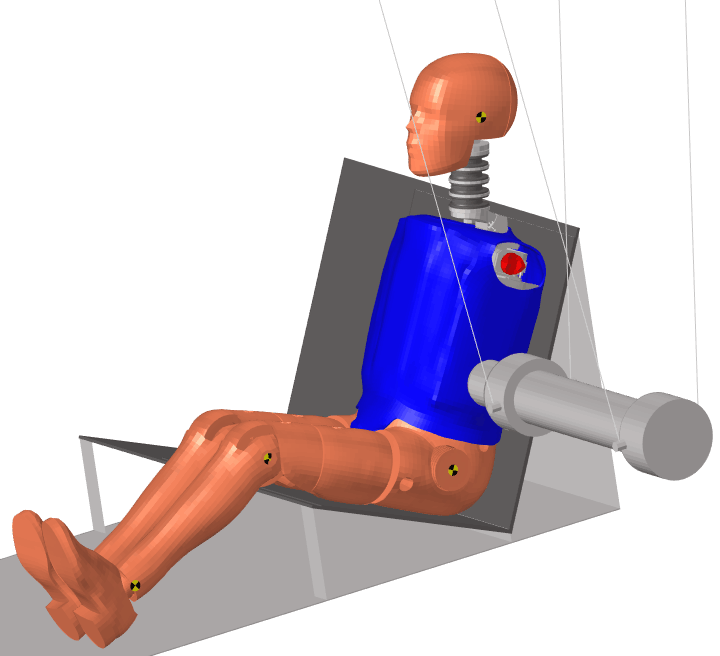

Abdominal impact test calibration

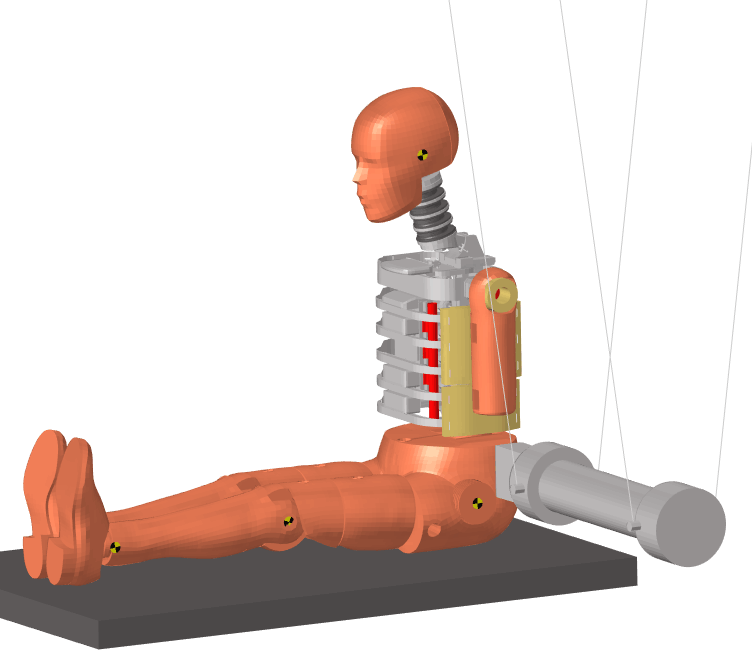

Acetabulum impact test calibration

Ilium joint impact test calibration

For more information about the dummy model, please contact Shanghai Dynawe Information Technology Co., Ltd.: Stephen Zhao, Tel: 13816888516, Email: stephen.zhao@dynawe.com.
