WorldSID50 Dummy FEA Model
The WorldSID50 dummy model is a finite element dummy model developed by Dynamore, a subsidiary of ANSYS. Material cards for each component of the LS-DYNA software were developed and calibrated, and calibration simulation analysis was conducted for each component according to the calibration procedure of the physical dummy model. The results were compared and optimized with physical calibration test results, ultimately resulting in a calibrated and validated high-precision WorldSID50 finite element dummy model. The latest version is 9.0, which meets the requirements of Euro-NCAP and C-NCAP virtual testing and Certification (VTC).

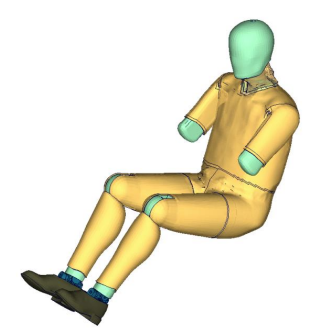

Finite element model

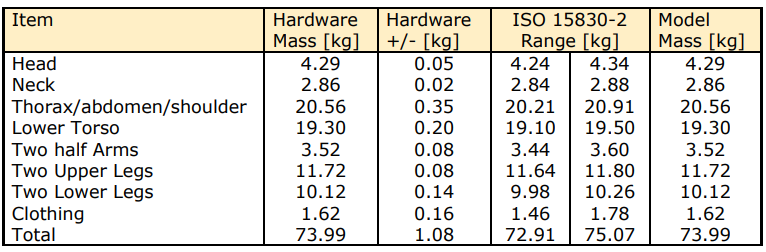

Comparison of quality between FEA model and physical dummy model
For the results of component-level calibration and full-dummy calibration, please refer to the "Dummy Development and User Manual"
For more information about the dummy model, please contact Shanghai Dynawe Information Technology Co., Ltd.: Stephen Zhao, Tel: 13816888516, Email: stephen.zhao@dynawe.com.
WorldSID50 Dummy FEA Model
The WorldSID50 dummy model is a finite element dummy model developed by Dynamore, a subsidiary of ANSYS. Material cards for each component of the LS-DYNA software were developed and calibrated, and calibration simulation analysis was conducted for each component according to the calibration procedure of the physical dummy model. The results were compared and optimized with physical calibration test results, ultimately resulting in a calibrated and validated high-precision WorldSID50 finite element dummy model. The latest version is 9.0, which meets the requirements of Euro-NCAP and C-NCAP virtual testing and Certification (VTC).
Finite element model
Comparison of quality between FEA model and physical dummy model
For the results of component-level calibration and full-dummy calibration, please refer to the "Dummy Development and User Manual"
For more information about the dummy model, please contact Shanghai Dynawe Information Technology Co., Ltd.: Stephen Zhao, Tel: 13816888516, Email: stephen.zhao@dynawe.com.
