FAA H350 Dummy FEA Model
The FAA H350 dummy model is developed by Dynawe in collaboration with Japan's JASTI company, which calibrates the LS-DYNA software for each component of the dummy. It conducts calibration simulation analysis for each component according to the calibration procedure of the physical dummy model, compares and optimizes the results with physical calibration tests, and ultimately obtains a calibrated and validated high-precision FAA H350 finite element dummy model. The latest version is currently 1.3.

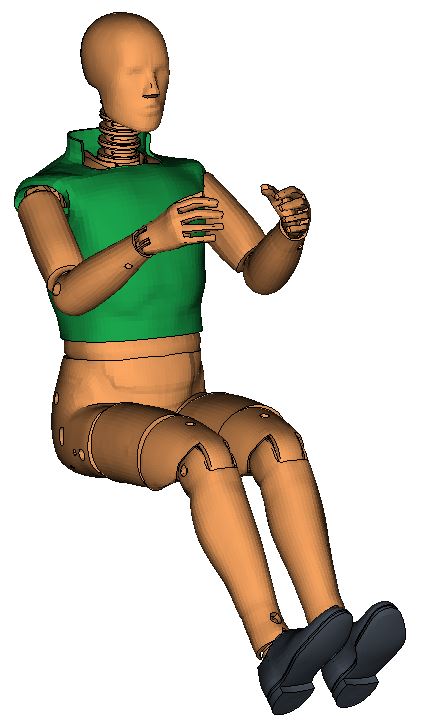

Finite element model
Component-level calibration

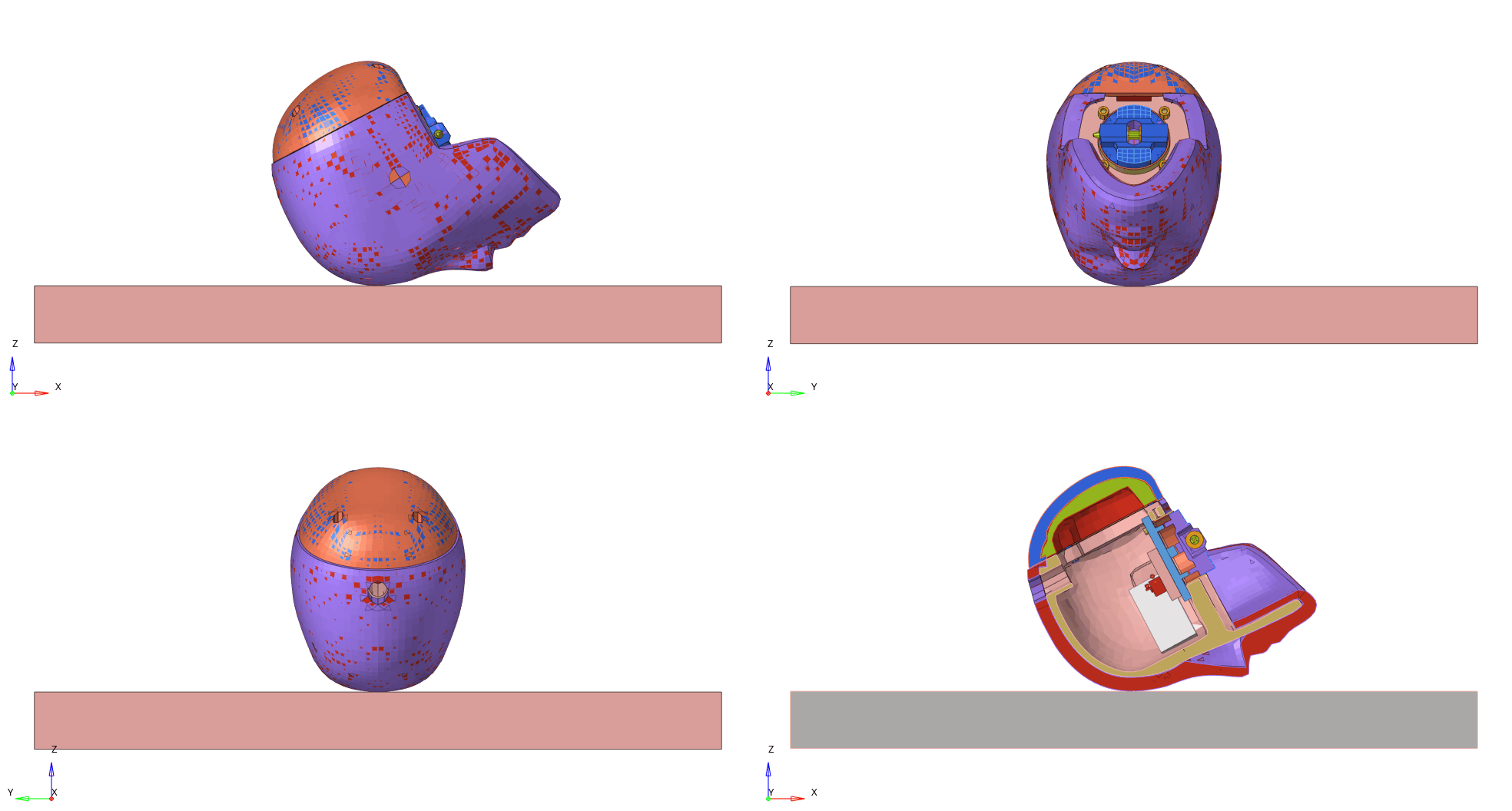

Head drop test calibration

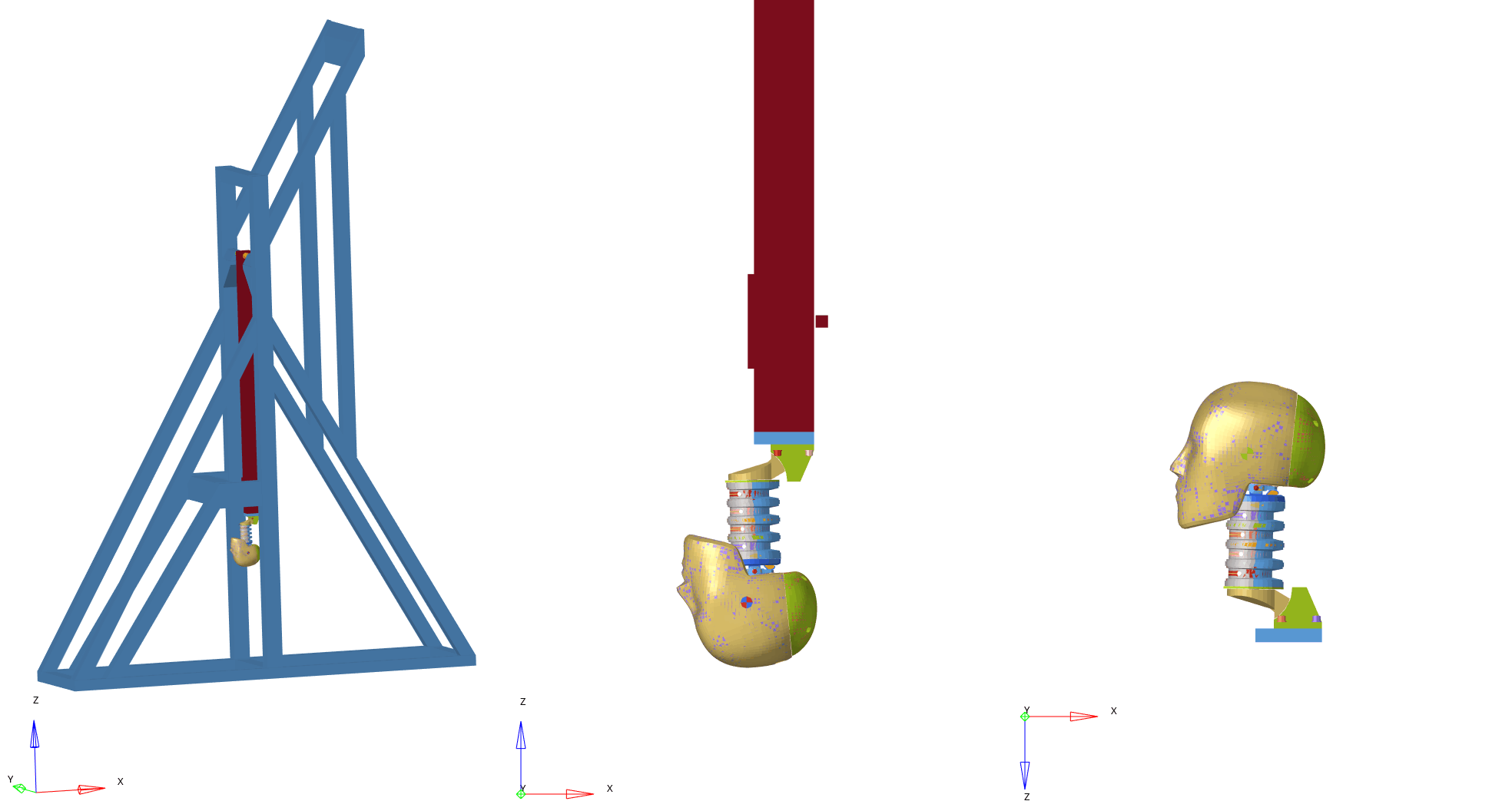

Neck bending test calibration

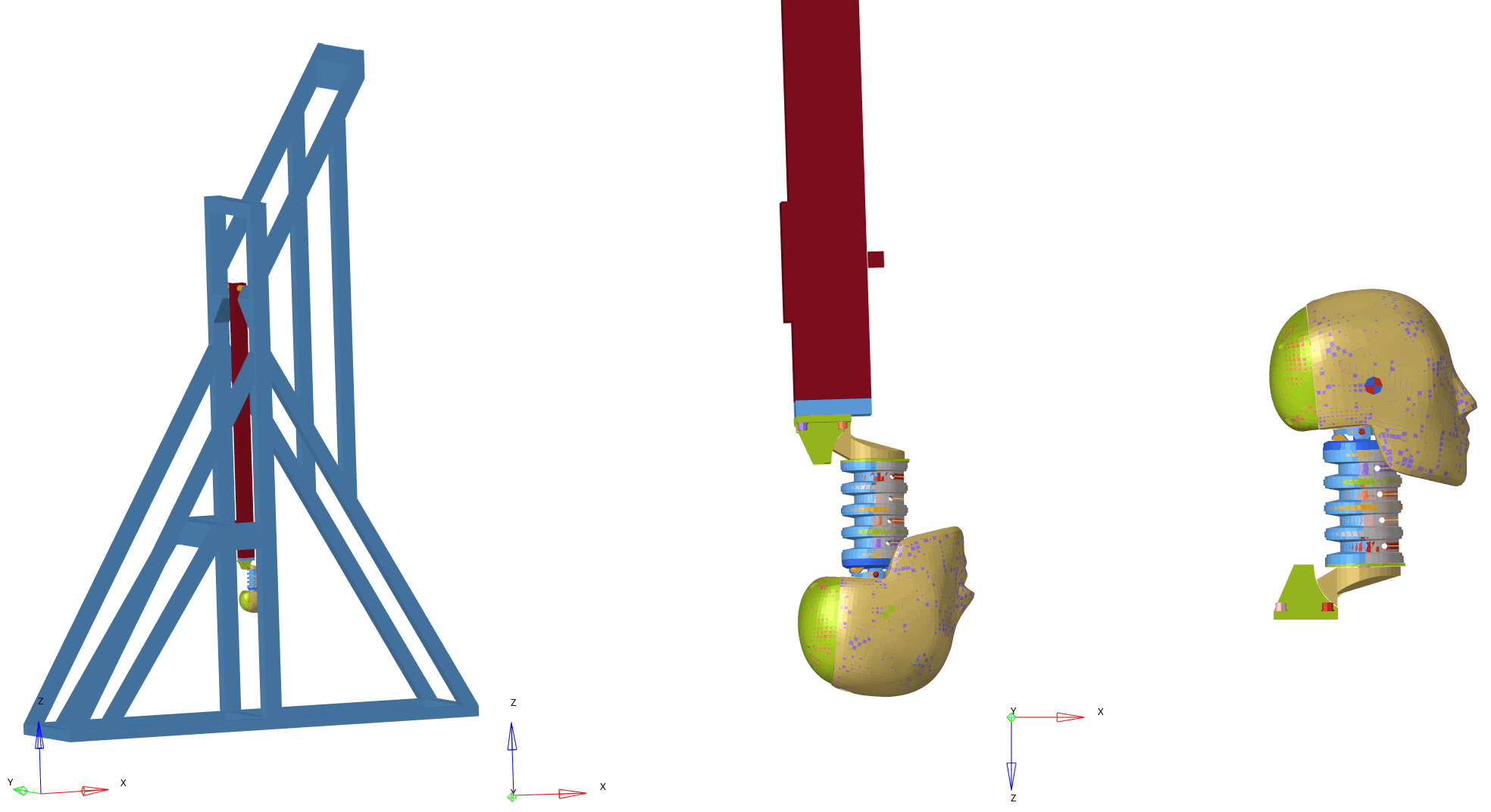

Neck stretching test calibration

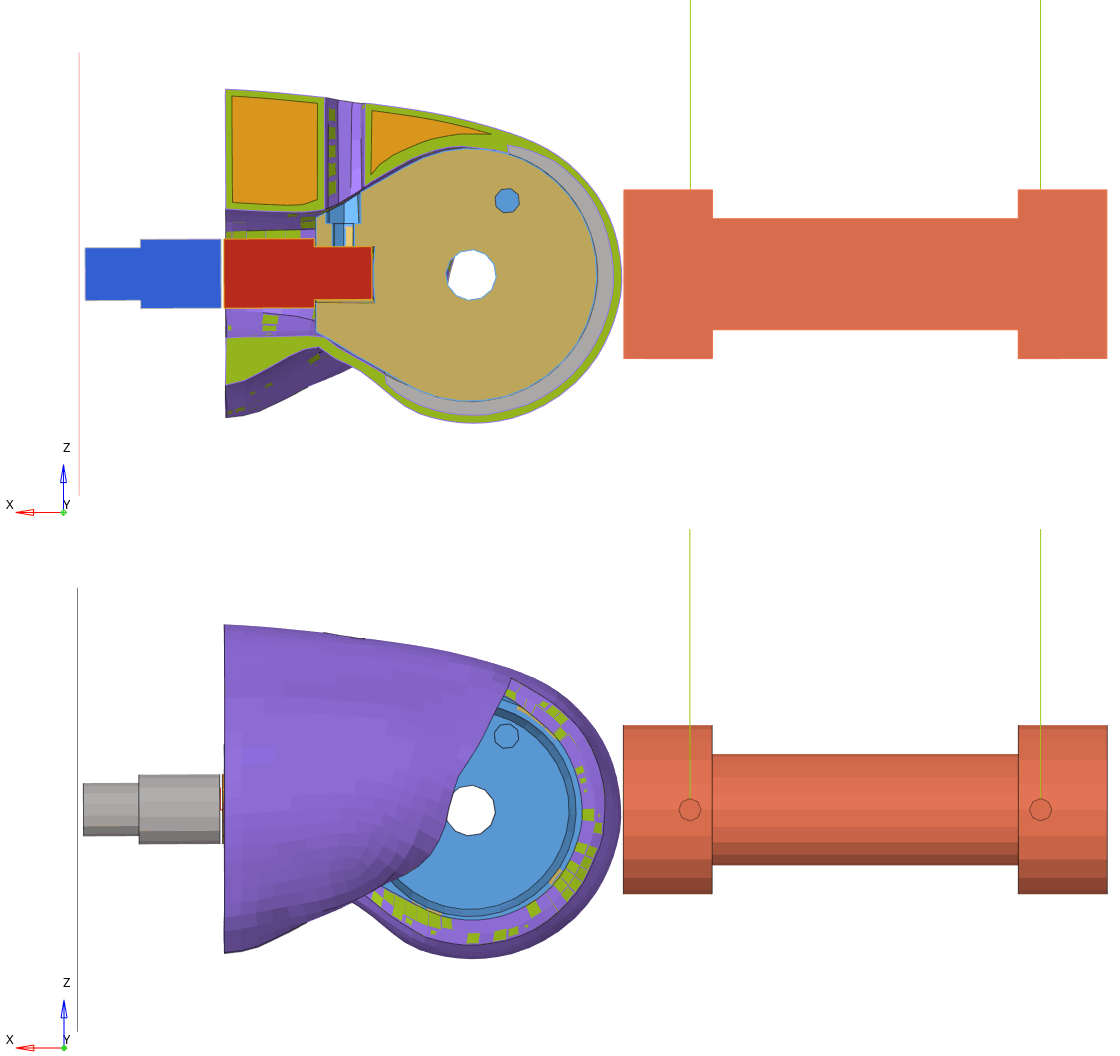

Knee impact test calibration

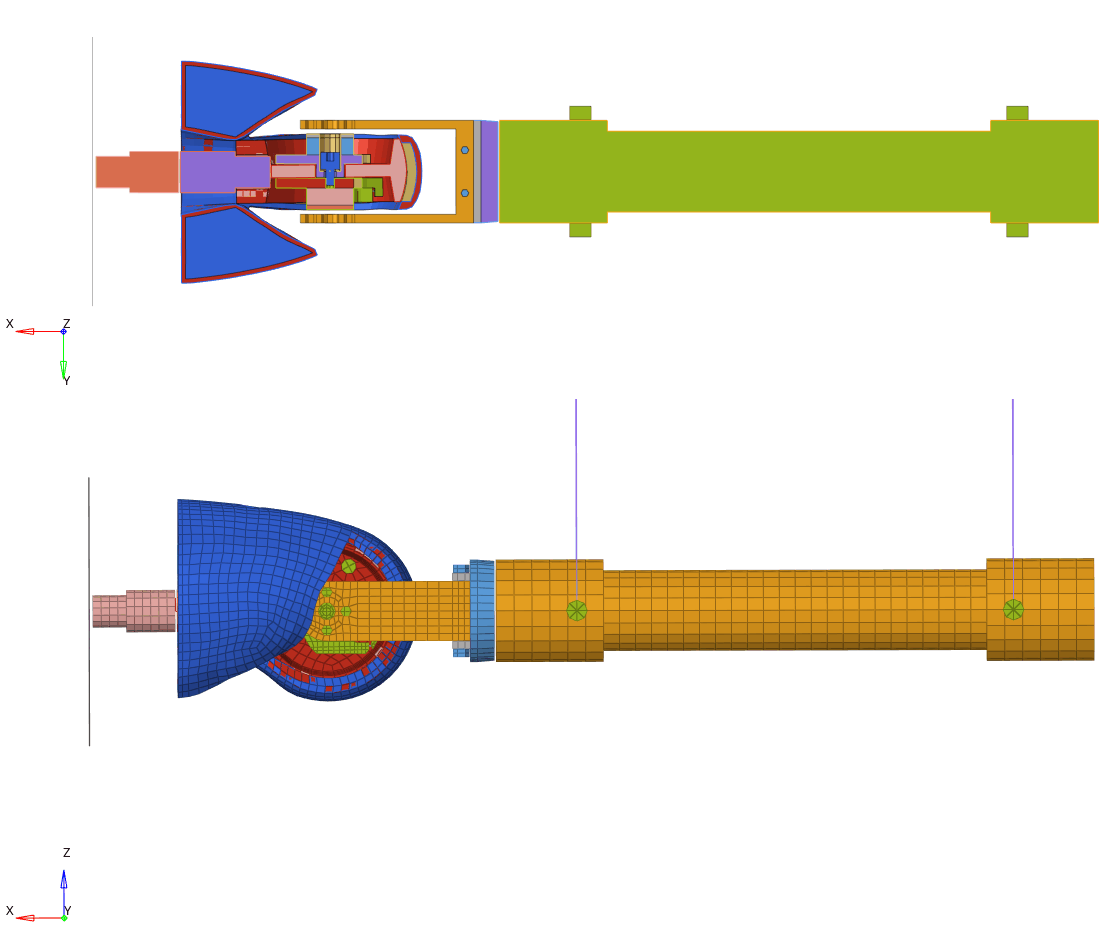

Knee slider impact test calibration

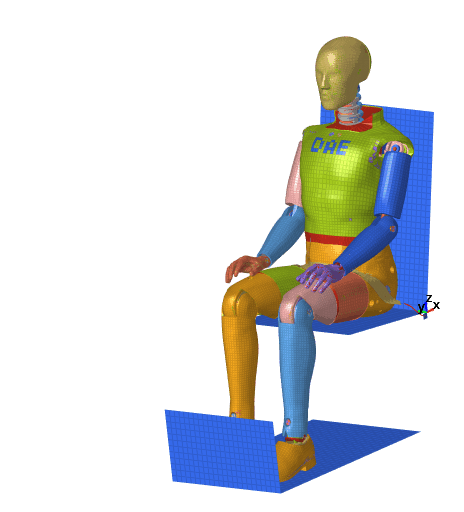

16G horizontal impact test for 2-point seat belts calibration
For more information about the dummy model, please contact Shanghai Dynawe Information Technology Co., Ltd.: Stephen Zhao, Tel: 13816888516, Email: stephen.zhao@dynawe.com.
